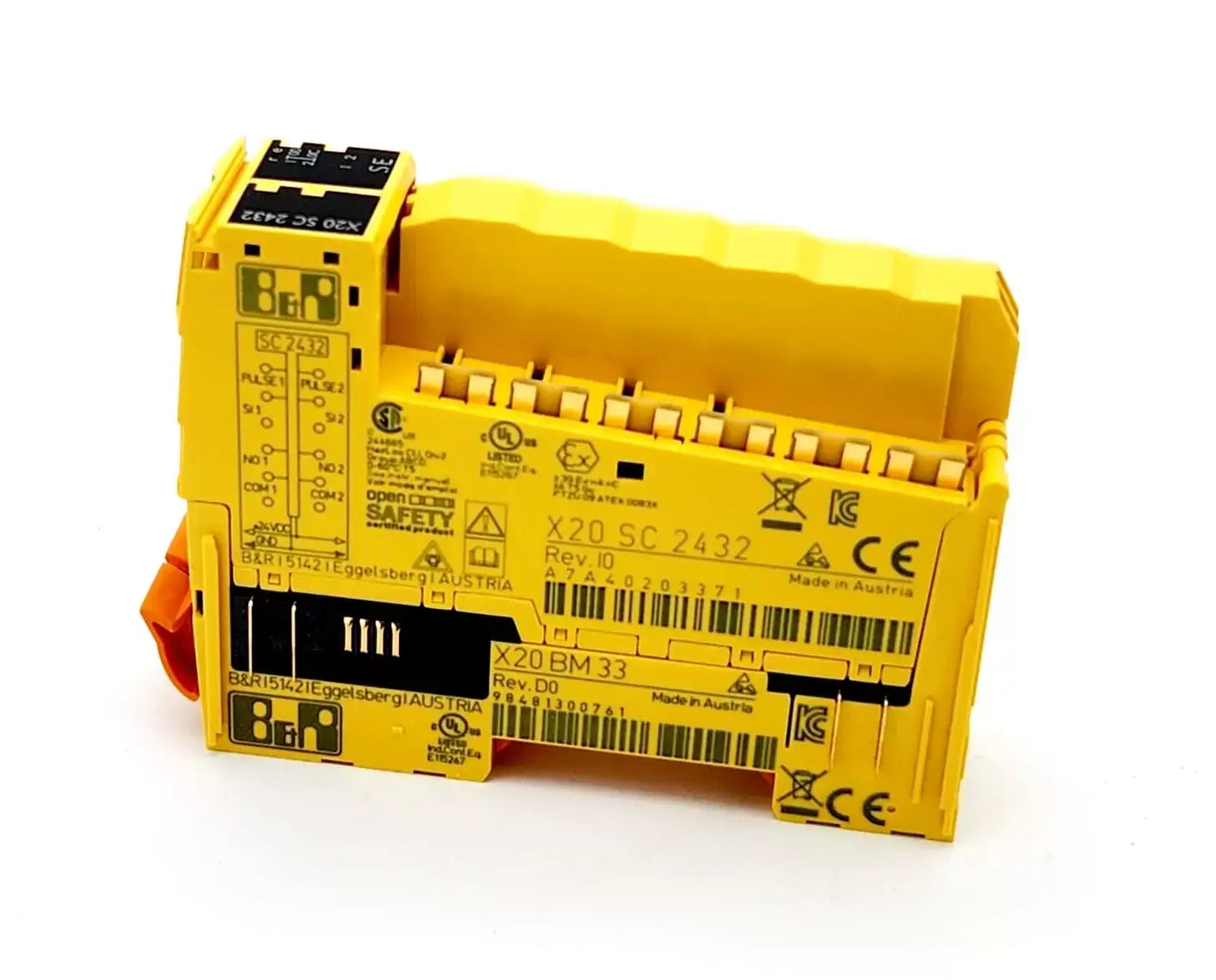

• B&R X20SC2432 Safe Mixed Module 24 VDC 0xA7A4 with 2 digital inputs, pulse outputs, and relay outputs shown in yellow casing.

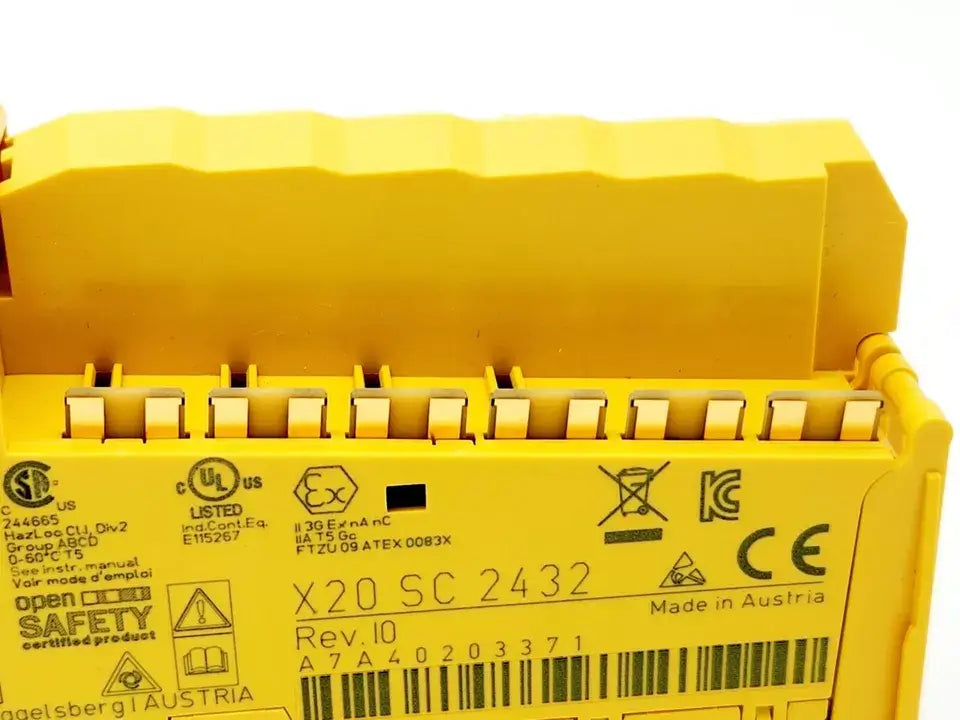

  • B&R X20SC2432 Safe Mixed Module 24 VDC 0xA7A4 with safety certifications and technical specifications on label, yellow casing.
  • B&R X20SC2432 Safe Mixed Module 24 VDC 0xA7A4 showing digital inputs and relay outputs in yellow housing.

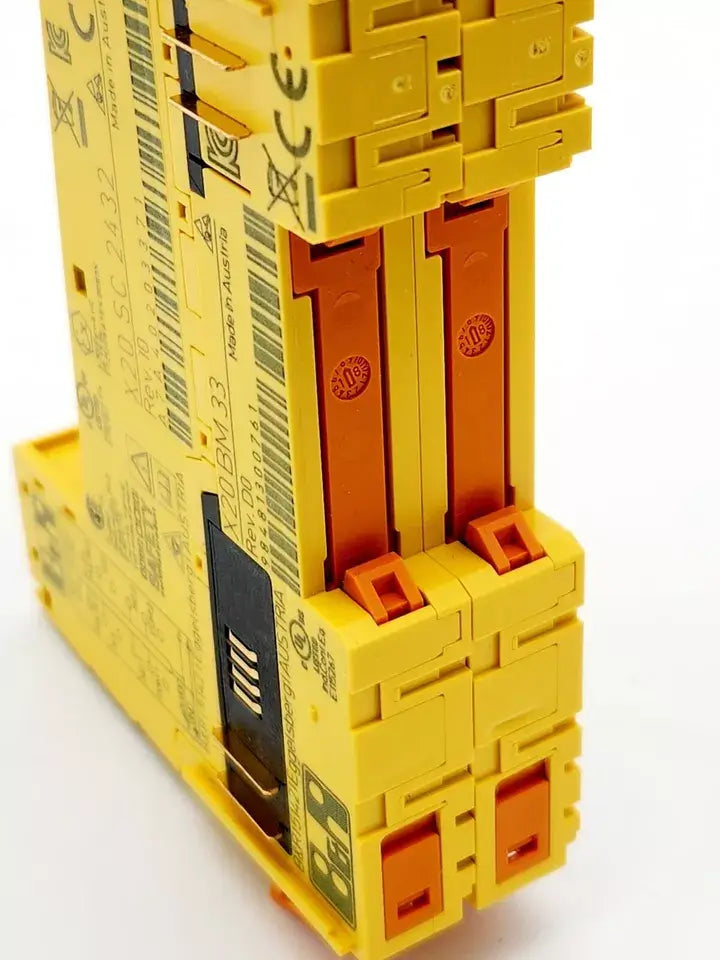

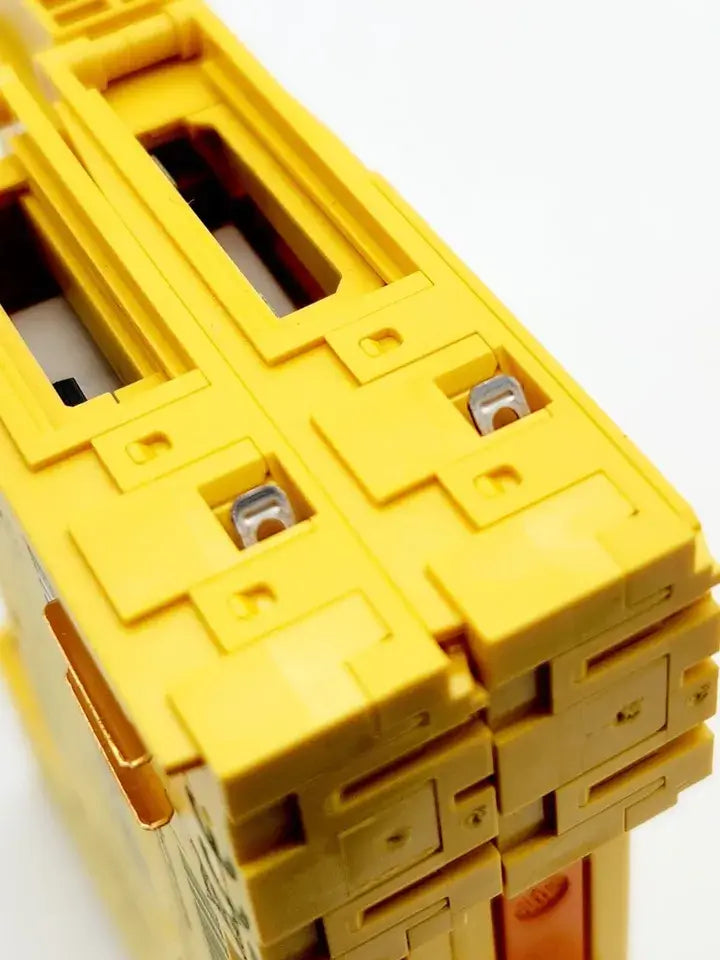

  • Close-up of B&R X20SC2432 Safe Mixed Module 24 VDC 0xA7A4 showing connectors and yellow casing. Industrial safety module.

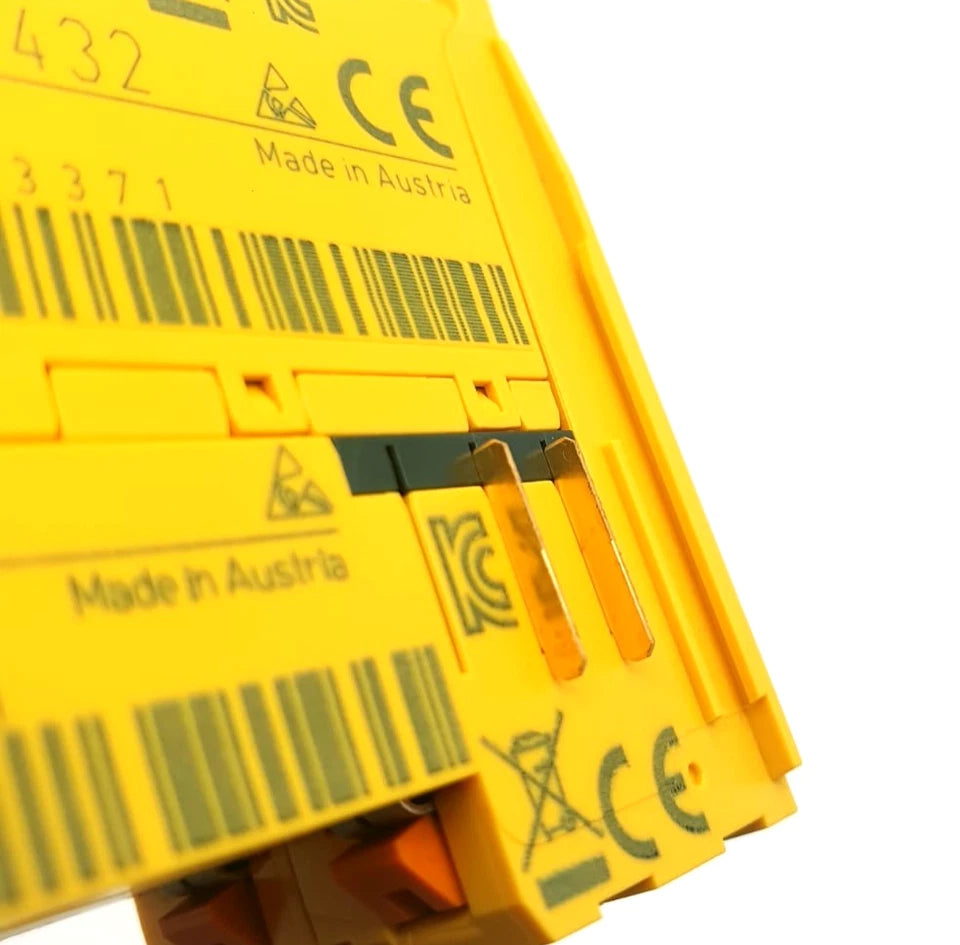

  • B&R X20SC2432 Safe Mixed Module 24 VDC 0xA7A4 with CE and KC markings, close-up of yellow casing showing certifications.
1 5

B&R

B&R X20SC2432 2 safe digital inputs type A 2 pulse outputs 24 VDC 0xA7A4

B&R X20SC2432 2 safe digital inputs type A 2 pulse outputs 24 VDC 0xA7A4

€237,99 EUR
€237,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

B&R X20SC2432 2 safe digital inputs type A 2 pulse outputs 24 VDC 0xA7A4

“ TOP condition, not entirely clear if used ”

Technical data:

  • Secure digital inputs: 2, sink circuit
  • Pulse outputs: 2
  • Software input filter: Adjustable per channel
  • Safe relay outputs: 2
  • Output type: relay
  • Relay module voltage: 48 VAC / 24 VDC
  • switching current: 6 A
  • Switch contact: closer
  • Outputs: individual channels separated

Further information:

  • The module is designed for nominal voltage of 24 VDC designed.
  • Supports safety applications up to PL e or SIL 3 .
  • Has Filters for switching on and off , which can be parameterized separately.
  • Provides pulse signals for diagnosis the sensor cable.
  • safety relay are integrated; the evaluation of the feedback contacts is carried out module-internal .
  • Secure digital output channels are protected against automatic restart in case of network errors protected.
  • Module is for the X20 field terminal 12-way designed.
