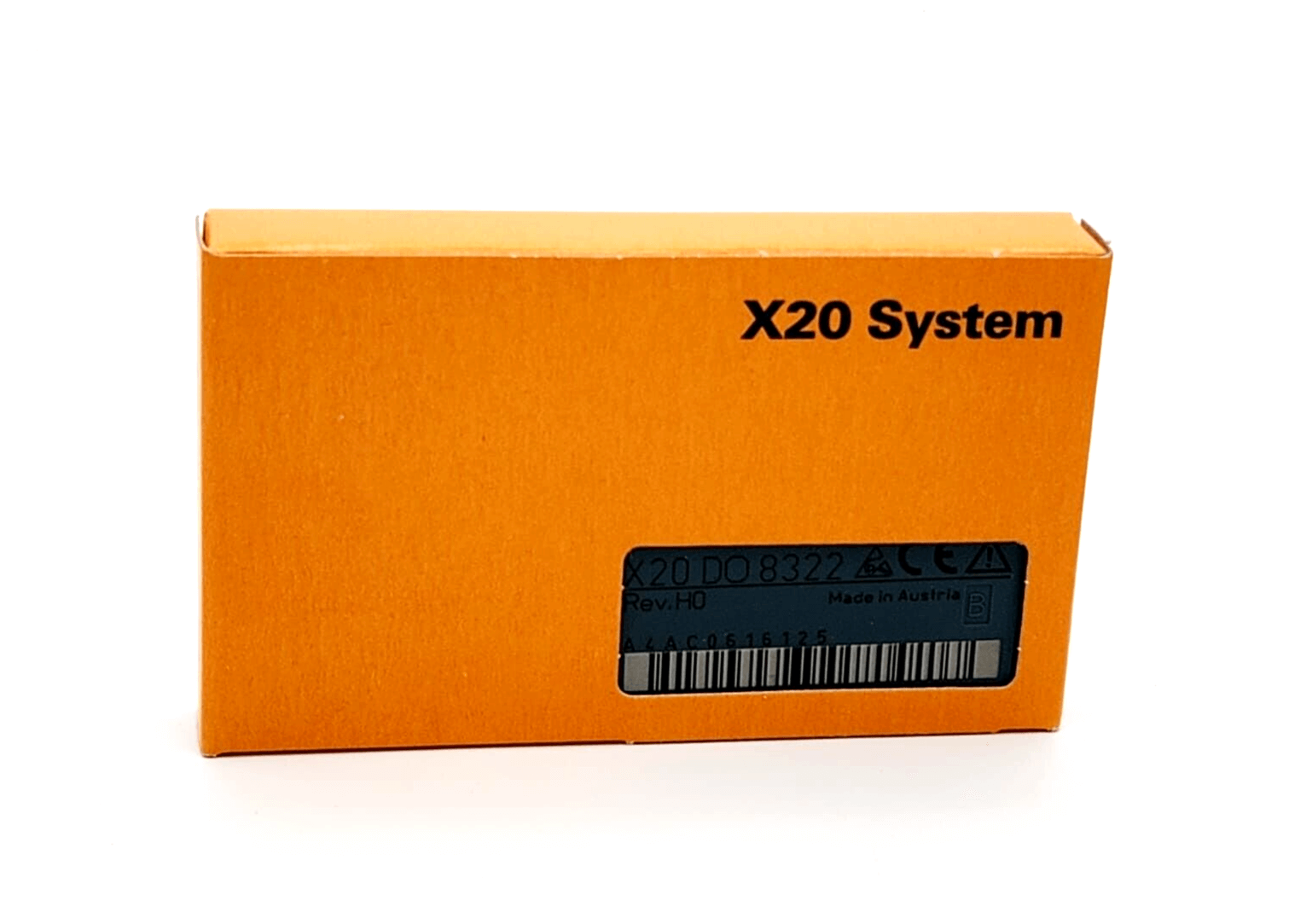

• B&R X20DO8322 module box, 8 digital outputs, 24 VDC, 1-wire technology, orange packaging with barcode and system label.
1 1

B&R

B&R X20DO8322, 8 digital outputs 24 VDC in 1-wire technology, 0xA4AC

B&R X20DO8322, 8 digital outputs 24 VDC in 1-wire technology, 0xA4AC

€42,99 EUR
€42,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
B&R X20DO8322, 8 digital outputs 24 VDC in 1-wire technology, 0xA4AC
  • B&R ID code 0xA4AC
  • status indicators I/O function per channel, operating state, module status
  • diagnosis
  • Run/Error module Yes, via status LED and SW status
  • outputs Yes, via status LED and SW status (output error status)
  • power consumption
  • bus 0.26 W
  • I/O-intern 0.8 W
  • Additional power loss due to actuators (ohmic) [W]  +0.42
  • approvals
  • CE Yes
  • UKCA Yes
  • ATEX Zone 2, II 3G Ex nA nC IIA T5 Gc
  • IP20, Ta (see X20 User Manual)
  • FTZÚ ​​09 ATEX 0083X
  • UL cULus E115267
  • Industrial Control Equipment
  • HazLoc cCSAus 244665
  • Process Control Equipment
  • for Hazardous Locations
  • Class I, Division 2, Groups ABCD, T5
  • DNV Temperature: B(0 to 55 °C)
  • Humidity: B(up to 100%)
  • Vibration: B(4 g)
  • EMC: B(bridge and open deck)
  • LR ENV1
  • KR Yes
  • ABS Yes
  • BV EC33B
  • Temperature: 5 - 55 °C
  • Vibration: 4 g
  • EMC: Bridge and open deck
  • EAC Yes
  • KC Yes
